Flush Cart Pump Parts

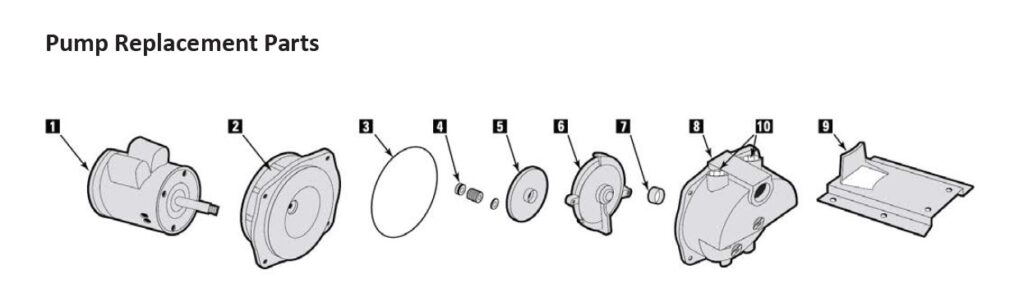

Description

1. Motor, NEMA J – 1 Phase – Munro Part # MLP26143 Geo-Flo Part # 4967
2. Mounting Ring – Munro Part # MLP1300 Geo-Flo Part # N/A
3. Square Cut Gasket – Munro Part # MLPG001 Geo-Flo Part # 4970**
4. Seal, Rottary w/ Spring – Munro Part # SCC800 Geo-Flo Part # 5179***
5. Impeller, Brass “B” Models – Munro Part # MLP1415 Geo-Flo Part # N/A
6. Diffuser – Munro Part # MLP1201 Geo-Flo Part # N/A
7. Rubber Diffuser Gasket – Munro Part # MLPG002 Geo-Flo Part # 4970**
8. Pump Body – Munro Part # MLP1100 Geo-Flo Part # N/A
9. Base – Munro Part # MLP1548 Geo-Flo Part # N/A
10. 3/4″ Priming Plug – Standard Hardware Item

** – Square (PN 4968) and Diffuser (PN 4969) gaskets are sold as a kit (PN 4970) and are recommended to be replaced at the same time.

*** – Replacing rotary seal requires removing the impeller and then the motor from the housing. Note that the impeller is a left-hand thread and a thin spanner style wrench is necessary to secure the motor shaft while removing the impeller since there is limited space between the mounting ring (Item 2) and impeller. Geo-Flo recommends removing the motor and inspecting shaft for wear prior to ordering the seal. If there is wear on the shaft, the entire motor should be replaced along with the seal.

For parts that are not available here we recommend finding a Munro Distributor near you

https://munropump.com/find-a-distributor/
